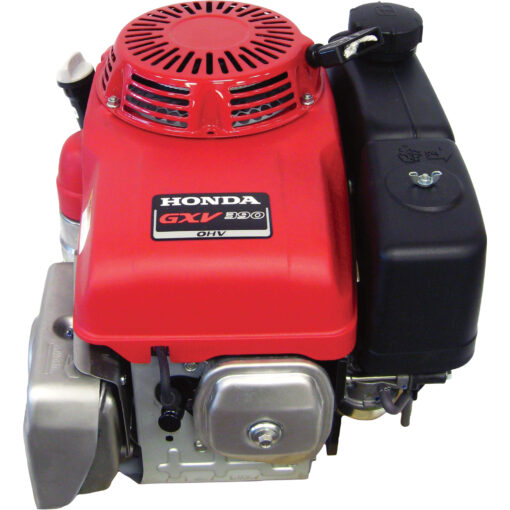

Honda Vertical OHV Engine — 389cc, GXV Series, 1in. x 3.11in. Shaft, Model# GXV390RT1DA33

The Honda Vertical OHV Engine has been an industry standard for reliability and durability to thousands of people, on thousands of applications. Overhead valve design offers, cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. Vertical shaft engine provides easy maintenance features and electronic ignition. Common applications include commercial turf equipment, lawn tractors and riding mowers. What’s Included (1) Engine Product ManualKey Specs Item# 44367 Brand Honda Engines Manufacturer’s Warranty 3 year limited warranty Ship Weight 90.0 lbs Engine Displacement 389 cc Engine Type GXV Series OHV commercial-duty Net Power Output 10.2 HP Start Type Recoil Shaft Diameter 1 in Shaft Length 3.11 in Net Torque 17.8 ft-lbs. Shaft Output Vertical Shaft Keyway 1/4 in Shaft End Tapped (Diameter (in.)/Threads per inch) 7/16-20, UNF2B TAP Shaft Rotation (From PTO Shaft Side) Counterclockwise Crankshaft D type Bearing Type Ball Cylinders (qty.) 1 Cylinder Bore Cast iron Compression Ratio 7.7:1 Cooling System Air cooled Bore 3.45 in Stroke 2.5 in Air Cleaner Type Dual element Fuel Tank No Fuel Type Gasoline Fuel Filter Yes Oil Capacity 1.2 qt Low Oil Alert Oil level switch Low Oil Shutdown Oil level switch Lubrication System Pressure/splash Ignition System Transistorized magneto Governor System Centrifugal mechanical Carburetor Float Throttle Control Remote (rod) Choke Control Remote (rod) Max. RPM 3,600 Muffler Included Yes Auto Compression Release Yes CARB Approval Yes Bolt Circle 10 in Dimensions L x W x H (in.) 17 x 15 x 15.87 in
