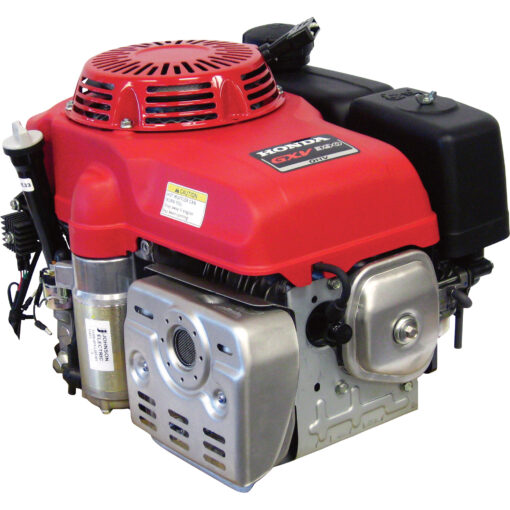

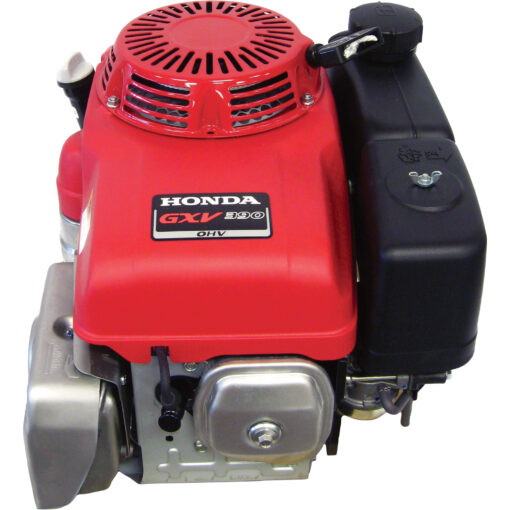

Honda Vertical OHV Engine with Electric Start — 389cc, GXV Series, 1in. x 3.11in. Shaft, Model# GXV390UT1DET3

The Honda 389cc GXV OHV engine is reliable and durable, thanks to its overhead valve design, which offers, cooler, fuel-efficient operation. The cast iron cylinder sleeve provides longer service life. Vertical-shaft engine provides easy-maintenance features and electronic ignition. Common applications include commercial turf equipment, lawn tractors and riding mowers. Not for sale in CA. What’s Included (1) Engine Product ManualKey Specs Item# 45685 Brand Honda Engines Manufacturer’s Warranty 3 year limited warranty Ship Weight 90.0 lbs Engine Displacement 389 cc Engine Type GXV Series OHV commercial-duty Net Power Output 10.2 HP Start Type Electric w/recoil backup Shaft Diameter 1 in Shaft Length 3.11 in Net Torque 17.8 ft-lbs. Shaft Output Vertical Shaft Keyway 1/4 in Shaft End Tapped (Diameter (in.)/Threads per inch) 7/16-20 Shaft Rotation (From PTO Shaft Side) Counterclockwise Crankshaft D type Bearing Type Ball Cylinders (qty.) 1 Cylinder Bore Cast iron Compression Ratio 7.7:1 Cooling System Air cooled Bore 3.2 in Stroke 2.5 in Air Cleaner Type Dual element Fuel Tank Yes Fuel Type Gasoline Fuel Tank Capacity 2.2 qt Fuel Filter Yes Oil Capacity 1.2 qt Low Oil Alert No Low Oil Shutdown No Lubrication System Pressure/splash Ignition System Electronic Governor System Centrifugal mechanical Carburetor Float Throttle Control Remote Choke Control Remote Max. RPM 3,600 Charging System Amps 3 Muffler Included Yes Auto Compression Release Yes Bolt Circle 10 in Dimensions L x W x H (in.) 17 x 15 x 15.87 in
